DZUS fittings replacement

After thirty years of use we have found the slots on a few of the Dzus fittings used in the monocoque constructed locker system doors have worn & searched the internet for replacements.

Here are the correct parts details to replace the Dzus fittings, nylon retaining washer & grommet.

Dzus D4-AJ5-100 $6 each with a lead time of 3 to 4 weeks as they need to be shipped in from overseas.
Available from RGA Fasteners, 159 – 163 Victoria Road, Marrickville, NSW, 2204
https://www.rgafasteners-psm.com/

Retaining washers Outside Diameter: 1/2" (12.7mm) Inside Diameter: .230" (5.8mm) Washer thickness: .03" (.8mm)
Available from Bullant Preformance, Unit 12, 78 Morrow Rd, Lonsdale SA 5160
https://bullantperformance.com.au/store/Nylon-Washers-for-1-4-Undercut-Quarter-Turn-Fastener-10-Pack-p58573227

rubber grommet part number 2198. outer diameter:17mm, hole diameter:12mm, centre diameter: 7.2mm, thickness 6mm, panel fit: 1.6mm
https://www.clarkrubber.com.au/products/grommet-7-2-1-6-10-wiring
Available from Clark Rubber

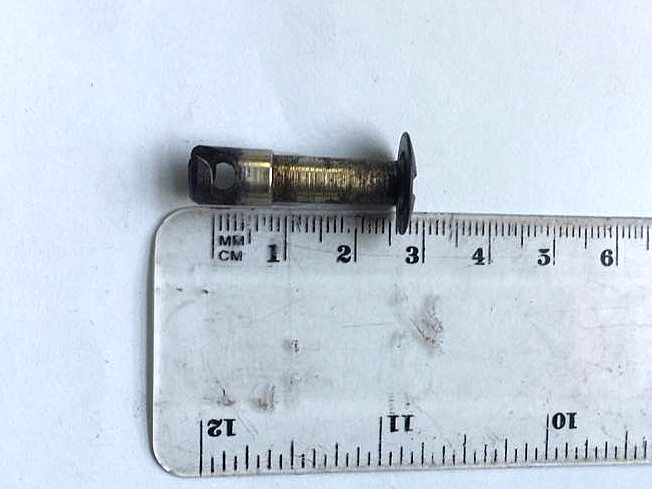

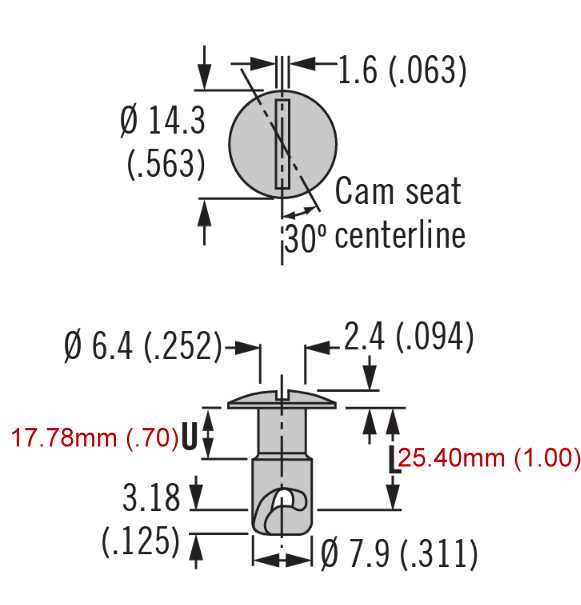

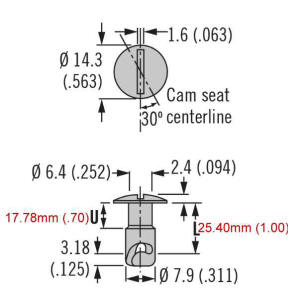

Dzus D4-AJ5-100 measurements	Dzus fitting

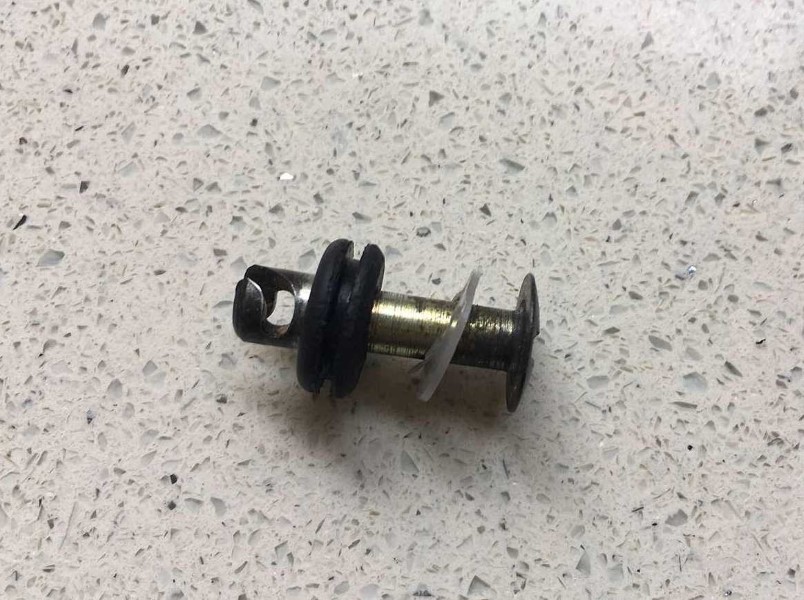

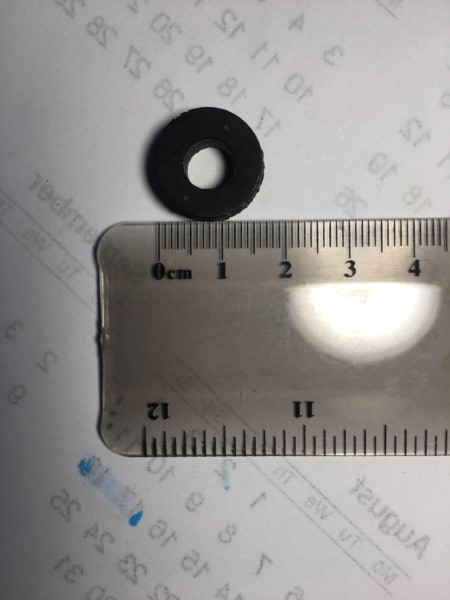

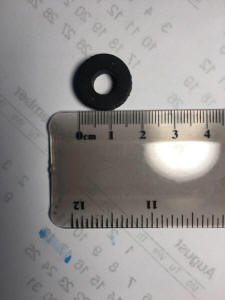

Dzus with retaining washer & rubber grommet	rubber grommet

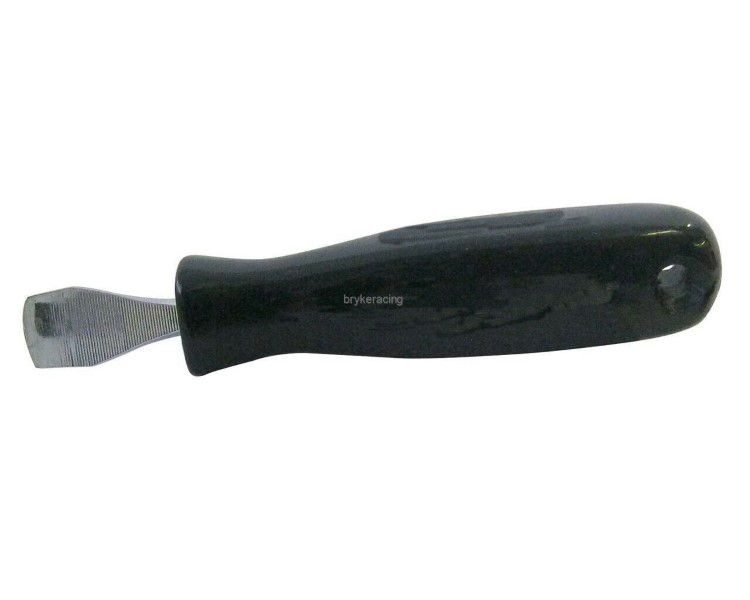

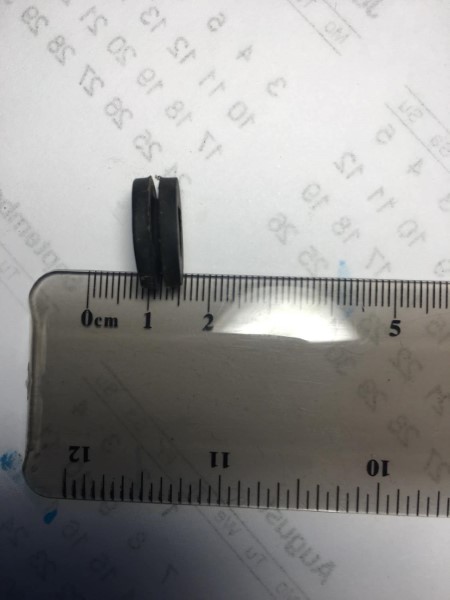

Dzus screwdriver	rubber grommet
