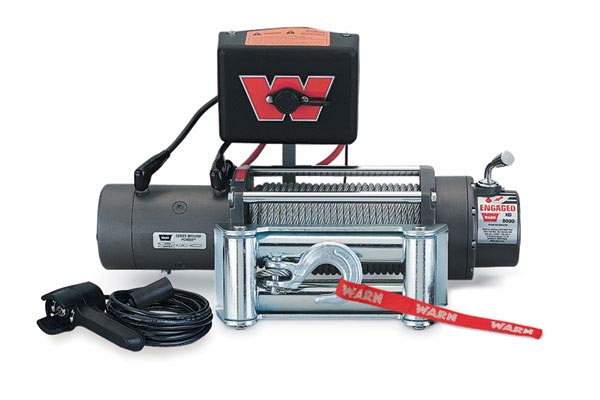

The XD9000 is Warn's long-time best selling winch
with a compact body and separate control pack letting it work
effectively in very tight spaces. It uses the 4.6 hp Series Wound TM
motor and three-stage planetary gearing offered on most of our
winches, so torque and line speed are outstanding. A quiet,
double-durable winch, pure and simple.
| Rated
Line Pull: |
9000 lbs. (4080 kgs.) single-line |
| Motor: |
12V 4.6 hp, 24V 2.5 hp Series WoundTM
|
| Remote
Control: |
Remote switch, 12' (3.7m) lead
|
|
Geartrain: |
3-Stage Planetary |
| Gear
Ratio: |
156:1 |
|
Lubrication: |
Aeroshell #17 |
| Clutch (freespooling): |
Sliding Ring Gear |
| Brake: |
Automatic Direct Drive Cone |
| Drum
Diameter/Length: |
2.5"/9.0" (6.4cm/23cm)
|
| Weight: |
78 lbs. (35 kgs.)
|
| Wire
Rope: |
100', 5/16"diameter (30m, 8mm diameter)
|
|
Fairlead: |
Roller |
|
Recommended Battery: |
650 CCA minimum for winching
|
| Battery
Leads: |
2 gauge, 72" (1.83m) |
Line Pull
lbs (kgs) |
Line Speed
feet/min (metres/min) |
motor
current |
pull by layer
layer/lbs (kgs) |
| 0 |
38 (11.6) |
70 amps |
1/9000 (4082) |
| 2000 (910) |
14.4 (4.39) |
180 amps |
2/8190 (3715) |
| 4000 (1810) |
11 (3.35) |
255 amps |
3/7500 (3402) |
| 6000 (2720) |
8.67 (2.64) |
330 amps |
4/7010 (3180) |
| 8000 (3630) |
6.88 (2.10) |
415 amps |
|
| 9000 (4080) |
6.38 (1.94) |
460 amps |
|
|
Above performance specs are based
on first layer of drum |
